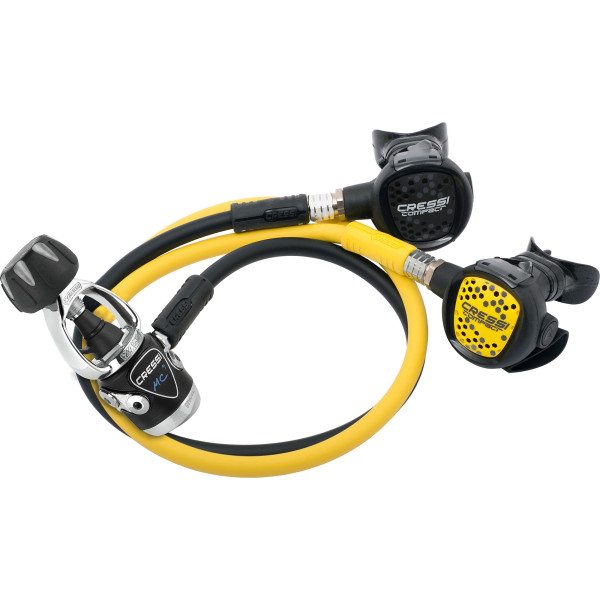

MC9 / Compact + Octopus Compact

Features 1st Stage:

• Hyperbalanced diaphragm

• 2 HP 7/16 UNF outputs

• 4 outlets MP 3/8 UNF

• Working pressure: 300 bar (4350 psi) DIN version, 232 bar (3365 psi) International version

• Calibration pressure: 10 bar

• Chemically nickel-plated brass body

• High capacity filter in chemically nickel-plated spherical bronze

• Removable nozzle in AISI 316 steel

• Overbalancing system

• Pneumatic spring to prevent pressure drop

• Stainless steel calibration spring with micropeening treatment

• Piston sliding sleeve replaceable during maintenance

• Polyurethane thermoplastic body protection

• Quantity of air delivered: 4500 l/min

• Weight INT version: 590 g

• Weight DIN version: 450 g

Features 2nd Stage:

• Downstream system

• Adjustable Venturi effect

• Patented anti-friction lever

• Large purge button

• Scratch-resistant surface

• Bayonet cap holder with safety lock

• Drain T removable without tools

• Weight without hose: 135 g

• Extremely light and flexible whip: 153 g
